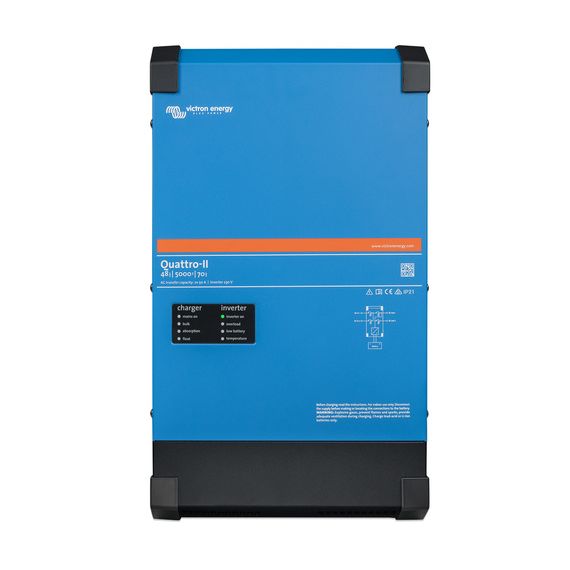

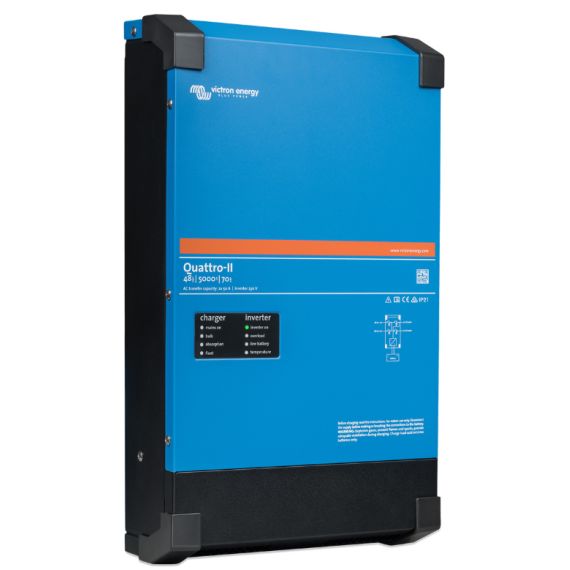

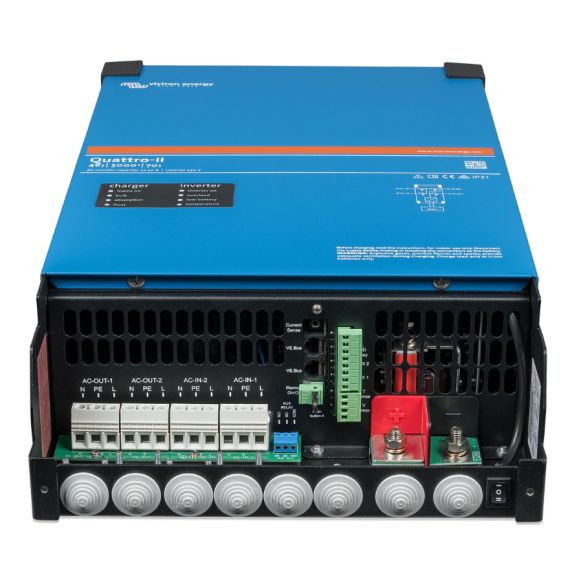

Quattro-II 48/5000/70-50/50 230V
| Quattro-II | 48/5000/70-50 | ||||
| PowerControl & PowerAssist | Yes | ||||
| Transfer switch | 50 A | ||||
| Maximum AC input current | 50 A | ||||
| INVERTER | |||||
| DC Input voltage range | 38-66 V | ||||
| Output | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1) | ||||
| Cont. output power at 25°C (3) | 5000 VA | ||||
| Cont. output power at 25°C | 4000 W | ||||
| Cont. output power at 40°C | 3700 W | ||||
| Cont. output power at 65°C | 3000 W | ||||
| Maximum apparent feed-in power | 5000 VA | ||||
| Peak power | 9000 W | ||||
| Maximum efficiency | 96% | ||||
| Zero load power | 18 W | ||||
| Zero load power in AES mode | 12 W | ||||
| Zero load power in Search mode | 2 W | ||||
| CHARGER | |||||
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz power factor: 1 |
||||
| Charge voltage 'absorption' | 57.6 V | ||||
| Charge voltage 'float' | 55.2 V | ||||
| Storage mode | 52.8 V | ||||
| Max. battery charge current (4) | 70 A | ||||
| Battery temperature sensor | Yes | ||||
| GENERAL | |||||
| Auxiliary output | Yes (32A) Default setting: switches off when in inverter mode | ||||
| External AC current sensor (optional) |
100A | ||||
| Programmable relay (5) | Yes | ||||
| Protection (2) | a – g | ||||
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration | ||||
| General purpose com. port | Yes, 2x | ||||
| Remote on-off | Yes | ||||
| Operating temperature range | -40 to +65°C (fan assisted cooling) | ||||
| Humidity (non-condensing) | max 95% | ||||
| ENCLOSURE | |||||
| Material & Colour | Steel, blue RAL 5012 | ||||
| Protection category | IP22 | ||||
| Battery-connection | M8 bolts | ||||
| 230 V AC-connection | Screw terminals 13 mm² (6 AWG) | ||||
| Weight | 30 kg | ||||
| Dimensions (hxwxd) | 560 x 328 x 148 mm | ||||
| STANDARDS | |||||
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
||||
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
||||
| Uninterruptible power supply | Please consult the certificates on Victrons website. | ||||
| Anti-islanding | Please consult the certificates on Victrons website. | ||||
| 1) Can be adjusted to 60 Hz 3) Non-linear load, crest factor 3:1 2) Protection key: 4) At 25°C ambient a) output short circuit 5) Programmable relay which can be set for general alarm, DC under voltage or b) overload genset start/stop function. AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A c) battery voltage too high up to 60VDC d) battery voltage too low e) temperature too high f) 230 VAC on inverter output g) input voltage ripple too high |
|||||
| SKU | VIC.QUA482504010 |
| Model # | QUA482504010 |
| UPC/EAN | 8719076054092 |
| Brand | Victron Energy |
| Shipping Weight | 35.0000kg |
| Shipping Width | 0.340m |
| Shipping Height | 0.440m |
| Shipping Length | 0.530m |
| Shipping Cubic | 0.079288000m3 |
