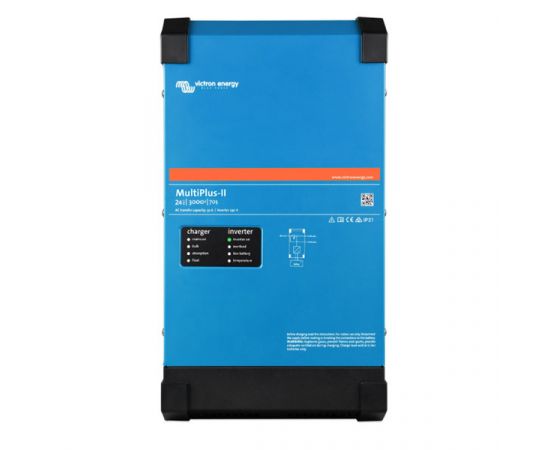

MultiPlus 24/3000/70-50 230V VE.Bus
Description
The new style Victron MultiPlus 24/3000/70-50 230V VE.Bus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transferUninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more"
Parameters |
Values |
| Model | 24/3000/70-32 |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32 A |
| Maximum AC input current | 32 A |
| DC Input voltage range | 19 – 33 V |
| Output | Output voltage: 230 VAC ± 2% ,Frequency: 50 Hz ± 0,1% |
| Cont. output power at 25°C | 3000 VA |
| Cont. output power at 25°C | 2400 W |
| Cont. output power at 40°C | 2200 W |
| Cont. output power at 65°C | 1700 W |
| Maximum apparent feed-in power | 3000 VA |
| Peak power | 5500 W |
| Maximum efficiency | 94% |
| Zero load power | 13 W |
| Zero load power in AES mode | 9 W |
| Zero load power in Search mode | 3 W |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Charge voltage 'absorption' | 28,8 V |
| Charge voltage 'float' | 27,6 V |
| Storage mode | 26,4 V |
| Maximum battery charge current | 70 A |
| Battery temperature sensor | Yes |
| Auxiliary output | Yes (50A) |
| External AC current sensor (optional) | 50A or 100A |
| Programmable relay | Yes |
| Protection | a - g |
| VE.Bus communication port | For parallel (not for 8k and 10k models) and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) | max95% |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP22 |
| Battery-connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 V AC-connection | Bolts M6 |
| Weight | 19 kg |
| Dimensions | 499 x 268 x 141 |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
Datasheet - Victron Multiplus 24/3000/70-50 230V (Datasheet-MultiPlus-inverter-charger--800VA-5kVA-EN-__1_.pdf, 484 Kb) [Download]
