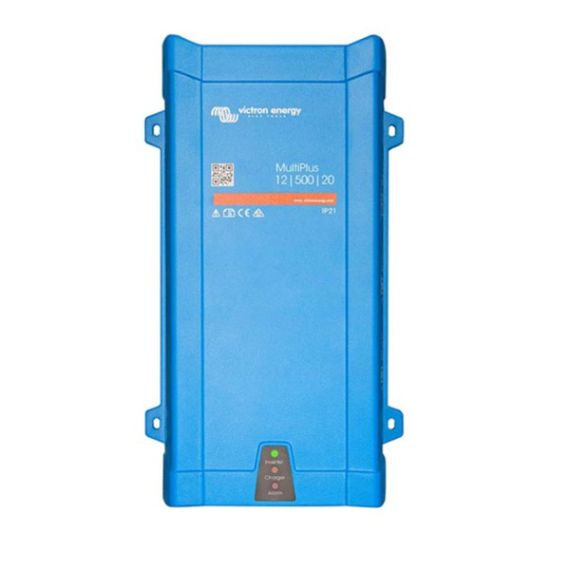

MultiPlus 12/500/20-16 230V VE.Bus
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more"
Parameters |
Values |
| Model | MultiPlus 12/500/20 |
| PowerControl / PowerAssist | No |
| Three Phase and parallel operation | No |
| Transfer switch | 16 A |
| Input voltage range | 9.5 - 17 V |
| Output | Output voltage: 2 30VAC ± 2% , Frequency: 50Hz ± 0,1% |
| Cont. output power at 25°C | 500 VA |
| Cont. output power at 25°C | 430 W |
| Cont. output power at 40°C | 400 W |
| Cont. output power at 65°C | 300 W |
| Peak power | 900 W |
| Maximum efficiency | 90% |
| Zero-load power | 6 W |
| Zero-load power in search mode | 2 W |
| AC Input | Input voltage range : 187-265 VAC , Frequency: 45 – 65 Hz |
| Charge voltage 'absorption' | 14.4 V |
| Charge voltage 'float' | 13.8 V |
| Storage mode | 13.2 V |
| Charge current house battery | 20A |
| Charge current starter battery | 1A |
| Battery temperature sensor | Yes |
| Programmable relay (5) | Yes |
| Protection (2) | a - g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| Remote on-off | On/off |
| DIP switches | Yes |
| Internal DC fuse | 125 A |
| Battery-connection | 16 mm² |
| 230V AC-connection | G-ST18i connector |
| Weight | 4,4 kg |
| Dimensions (h x w x d) | 311 x 182 x 100 mm |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 |
| Emission Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Automotive Directive | ECE R10-5 |
